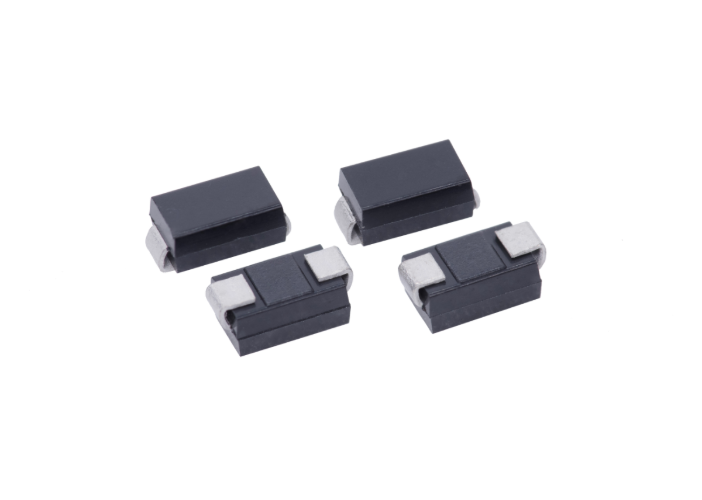

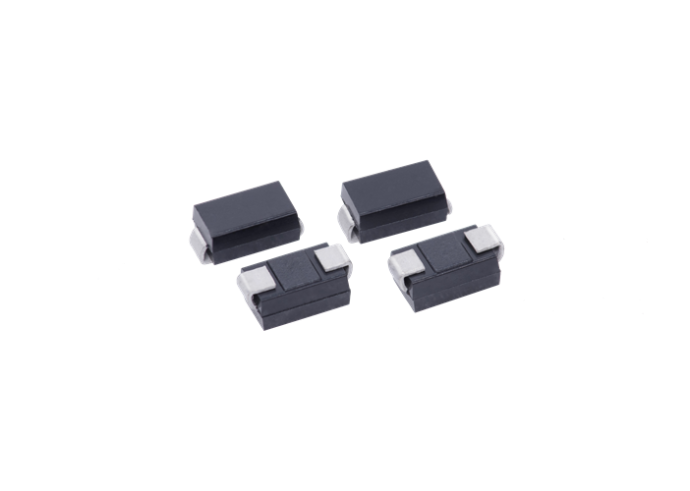

FEATURES
- For surface mounted applications in order to optimize board space
- Halogen-Free
- RoHS compliant
- Typical maximum temperature coefficient △VBR=0.1%xVBR@25℃x△T
- Low profile package
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- Repetition Rate (duty cycle):0.01%
- Fast response time: typically less than 1.0ps from 0 Volts to V(BR)
- Typical IR less than 1μA above 12V at terminals
- Plastic package has Underwriters Laboratory Flammability 94V-O
- Matte Tin Lead-free plated
MECHANICAL DATA

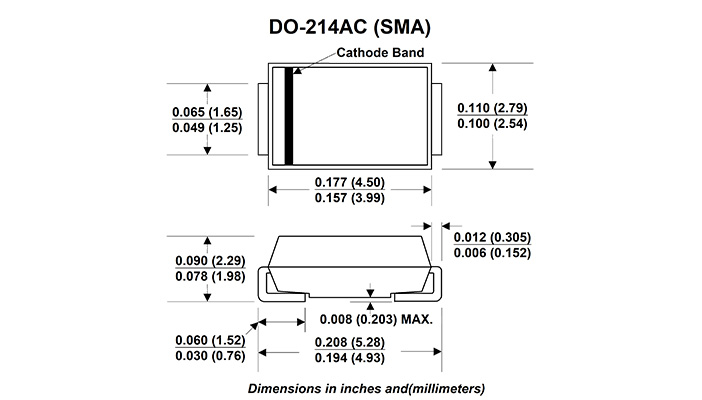

Case: JEDEC DO214AC. Molded plastic over glass passivated junction
Terminal: Solderable per MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode) except Bidirectional
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.002 ounce, 0.063 gram
DEVICES FOR BIPOLAR APPLICATION
For Bidirectional use Suffix CA for types P4SMA6.8CA thru types P4SMA550CA
Electrical characteristics apply in both directions
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
| RATING | SYMBOL | VALUE | UNITS |
| Peak Pulse Power Dissipation on 10/1000μs waveform (Note 1,2 ,FIG.1) | PPPM | Minimum 600 | Watts |
| Peak Pulse Current of on 10/1000μs waveform (Note 1,FIG.3) | IPPM | SEE TABLE 1 | Amps |
| Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load,(JEDEC Method) (Note2,3) | IFSM | 65 | Amps |
| Operating junction and Storage Temperature Range | TJ , TSTG | -55 to + 150 | ℃ |
Notes:
- Non-repetitive current pulse , per Fig. 3 and derated above TA = 25℃ per Fig. 2 .
- Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal
- 8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
SPECIFICATION
CURVES & DIMENSIONS

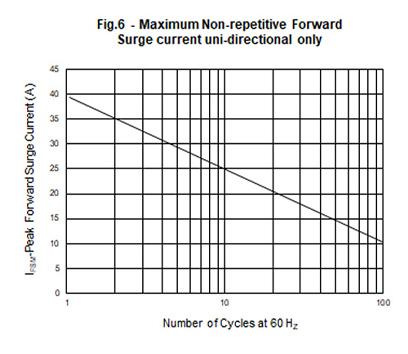

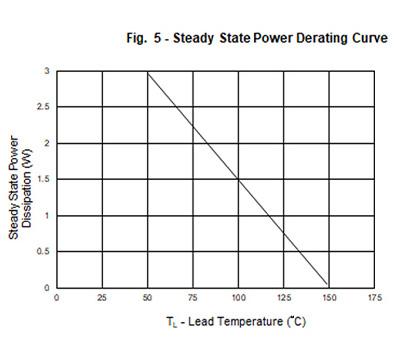

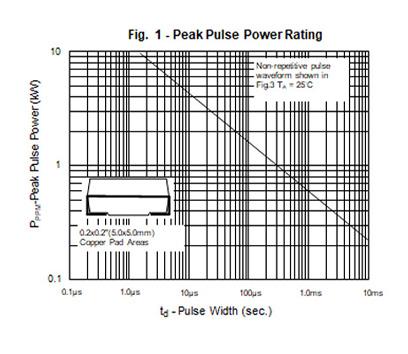

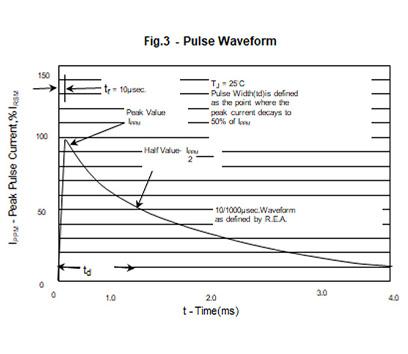

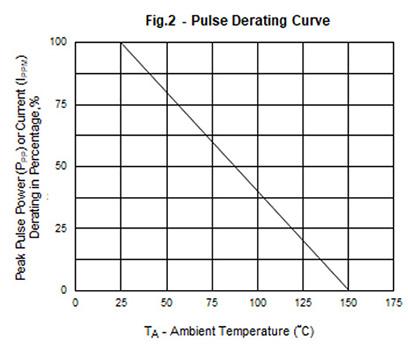

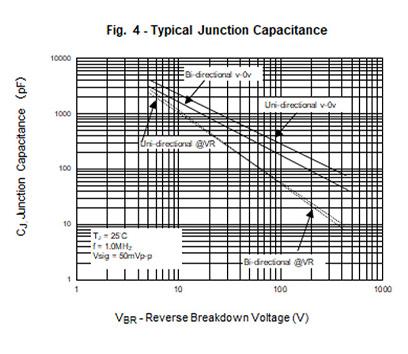

RATINGS AND CHARACTERISTIC CURVES
Ratings and Characteristic Curves (TA=25℃ unless otherwise noted)
SYSTEM
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

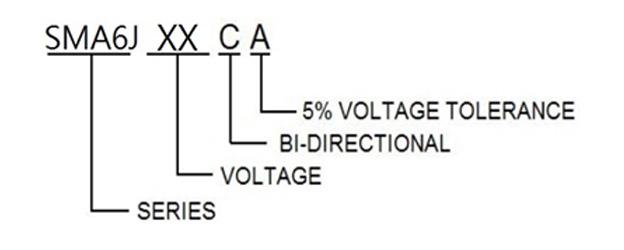

Part Numbering System

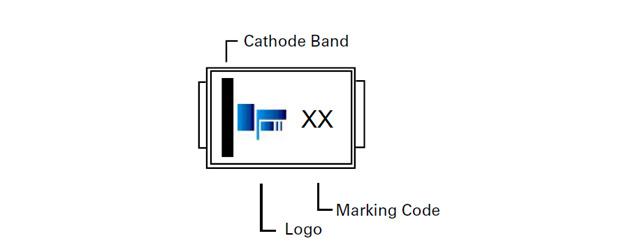

Part Marking System
Packaging
| Part number |
Component Package | Quantity | Packaging Option | Packaging Specification |
| SMA6JxxxA |
DO-214AC | 5000 | Tape & Reel - 12mm/13" tape | EIA STD RS-481 |
| SMA6JxxxA | DO-214AC | 1000 | Tape & Reel - 12mm/ 7" tape | EIA STD RS-481 |
