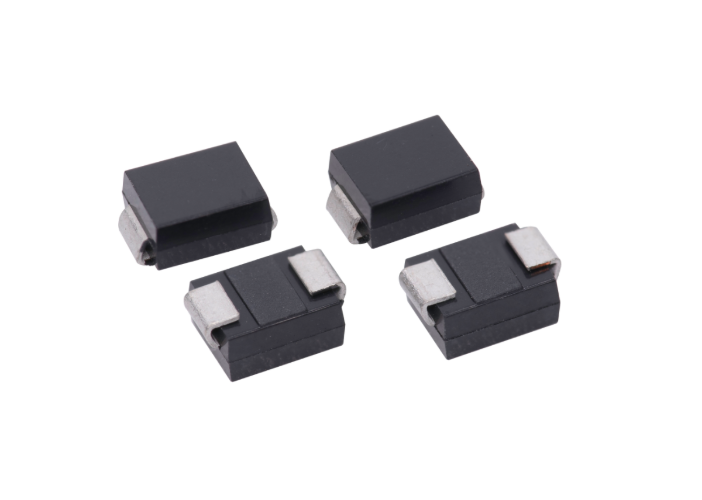

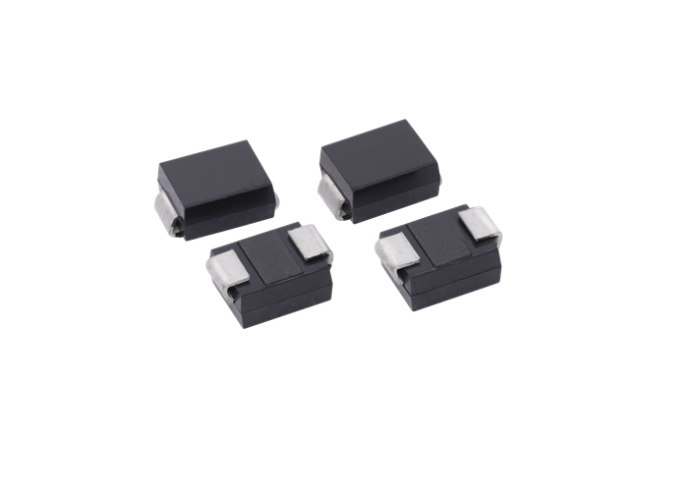

1.5SMBJ

https://www.luckyforests.com/web/image/product.template/16/image_1920?unique=bb08912
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 12 TO 85 Volts
1500 Watt Peak Pulse Power

    This combination does not exist.

    FEATURESSPECIFICATION CURVES & DIMENSIONSSYSTEM


    FEATURES

    • For surface mounted applications in order to
      optimize board space
    • Halogen-Free
    • RoHS compliant
    • Typical maximum temperature coefficient △VBR=0.1%xVBR@25℃x△T
    • For surface mounted applications in order to optimize board space
    • Low profile package
    • Built-in strain relief
    • Glass passivated junction
    • Low inductance
    • Excellent clamping capability
    • Repetition Rate(duty cycle):0.05%
    • Fast response time: typically less than 1.0ps from
      0 Volts to BV min.
    • High temperature soldering: 260°C/40 seconds
      at terminals
    • Plastic package has Underwriters Laboratory
      Flammability 94V-O
    • Matte Tin Lead-free plated

    MECHANICAL DATA

    Case: JEDEC DO214AA. Molded plastic over glass passivated junction
    Terminal: Solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes positive end (cathode) except Bidirectional
    Standard Packaging: 12mm tape(EIA STD RS-481)
    Weight: 0.003ounce, 0.093gram

    DEVICES FOR BIPOLAR APPLICATION

    For Bidirectional use CA Suffix for types 1.5SMBJ12CA thru types 1.5SMBJ58CA

    Electrical characteristics apply in both directions


    MAXIMUM RATINGS AND CHARACTERISTICS

    Ratings at 25℃ ambient temperature unless otherwise specified.
    RATING SYMBOL VALUE
    		UNITS
    Peak Pulse Power Dissipation on 10/1000μs waveform (Note 1,2,FIG.1)
    		 PPPM Minimum 1500
    		Watts
    Peak Pulse Current of on 10/1000μs waveform (Note 1,FIG.3)
    		IPPM
    		SEE TABLE 1
    		Amps
    Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load,(JEDEC Method) (Note 2,3)
    		IFSM100Amps
    Operating junction and Storage Temperature Range
    		TJ , TSTG-55 to + 150℃

    Notes:

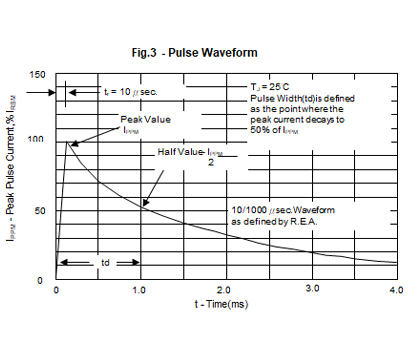

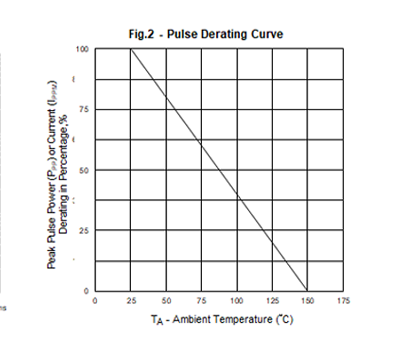

    1. Non-repetitive current pulse , per Fig. 3 and derated above TA = 25℃  per Fig. 2 .
    2. Mounted on 5.0mm2(0.03mm thick) Copper Pads to each terminal
    3. 8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.



    SPECIFICATION

    1.5SMBJ
    PART NUMBER

    DEVICE MARKING CODE

    REVERSE STAND-OFF VOLTAGE VRWM(V)

    BREAKDOWN
    VOLTAGE
    VBR(V) @IT

    TEST
    CURRENT
    IT (mA)

    MAXIMUN CLAMPING VOLTAGE @Ipp Vc(V)
    (10/1000uS)

    PEAK
    PULSE
    CURRENT
    Ipp (A)
    (10/1000uS)

    MAXIMUM
    CLAMPING
     VOLTAGE
     @Ipp Vc(V)
    (8/20uS)

    PEAK PULSE CURRENT Ipp (A)
    (8/20uS)

    REVERSE LEAKAGE @VRWM
    IR(μA)

    UNI- POLAR

    BI-POLAR

    UNI

    BI

    MIN

    MAX

    1.5SMBJ12A

    1.5SMBJ12CA

    GEE

    BEE

    12.0

    13.30

    14.70

    1

    19.9

    75.4

    25.9

    377.0

    1.0

    1.5SMBJ13A

    1.5SMBJ13CA

    GEG

    BEG

    13.0

    14.40

    15.90

    1

    21.5

    69.8

    28.0

    349.0

    1.0

    1.5SMBJ14A

    1.5SMBJ14CA

    GEK

    BEK

    14.0

    15.60

    17.20

    1

    23.2

    64.7

    30.2

    323.5

    1.0

    1.5SMBJ15A

    1.5SMBJ15CA

    GEM

    BEM

    15.0

    16.70

    18.50

    1

    24.4

    61.5

    31.7

    307.5

    1.0

    1.5SMBJ16A

    1.5SMBJ16CA

    GEP

    BEP

    16.0

    17.80

    19.70

    1

    26.0

    57.7

    33.8

    288.5

    1.0

    1.5SMBJ17A

    1.5SMBJ17CA

    GER

    BER

    17.0

    18.90

    20.90

    1

    27.6

    54.4

    35.9

    272.0

    1.0

    1.5SMBJ18A

    1.5SMBJ18CA

    GET

    BET

    18.0

    20.00

    22.10

    1

    29.2

    51.4

    38.0

    257.0

    1.0

    1.5SMBJ20A

    1.5SMBJ20CA

    GEV

    BEV

    20.0

    22.20

    24.50

    1

    32.4

    46.3

    42.1

    231.5

    1.0

    1.5SMBJ22A

    1.5SMBJ22CA

    GEX

    BEX

    22.0

    24.40

    26.90

    1

    35.5

    42.3

    46.2

    211.5

    1.0

    1.5SMBJ24A

    1.5SMBJ24CA

    GEZ

    BEZ

    24.0

    26.70

    29.50

    1

    38.9

    38.6

    50.6

    193.0

    1.0

    1.5SMBJ26A

    1.5SMBJ26CA

    GFE

    BFE

    26.0

    28.90

    31.90

    1

    42.1

    35.7

    54.7

    178.5

    1.0

    1.5SMBJ28A

    1.5SMBJ28CA

    GFG

    BFG

    28.0

    31.10

    34.40

    1

    45.4

    33.1

    59.0

    165.5

    1.0

    1.5SMBJ30A

    1.5SMBJ30CA

    GFK

    BFK

    30.0

    33.30

    36.80

    1

    48.4

    31.0

    62.9

    155.0

    1.0

    1.5SMBJ33A

    1.5SMBJ33CA

    GFM

    BFM

    33.0

    36.70

    40.60

    1

    53.3

    28.2

    69.3

    141.0

    1.0

    1.5SMBJ36A

    1.5SMBJ36CA

    GFP

    BFP

    36.0

    40.00

    44.20

    1

    58.1

    25.9

    75.5

    129.5

    1.0

    1.5SMBJ40A

    1.5SMBJ40CA

    GFR

    BFR

    40.0

    44.40

    49.10

    1

    64.5

    23.3

    83.9

    116.5

    1.0

    1.5SMBJ43A

    1.5SMBJ43CA

    GFT

    BFT

    43.0

    47.80

    52.80

    1

    69.4

    21.7

    90.2

    108.5

    1.0

    1.5SMBJ45A

    1.5SMBJ45CA

    GFV

    BFV

    45.0

    50.00

    55.30

    1

    72.7

    20.6

    94.5

    103.0

    1.0

    1.5SMBJ48A

    1.5SMBJ48CA

    GFX

    BFX

    48.0

    53.30

    58.90

    1

    77.4

    19.4

    100.6

    97.0

    1.0

    1.5SMBJ51A

    1.5SMBJ51CA

    GFZ

    BFZ

    51.0

    56.70

    62.70

    1

    82.4

    18.2

    107.1

    91.0

    1.0

    1.5SMBJ54A

    1.5SMBJ54CA

    GGE

    BGE

    54.0

    60.00

    66.30

    1

    87.1

    17.3

    113.2

    86.5

    1.0

    1.5SMBJ58A

    1.5SMBJ58CA

    GGG

    BGG

    58.0

    64.40

    71.20

    1

    93.6

    16.1

    121.7

    80.5

    1.0

    1.5SMBJ60A

    　

    GGK

    　

    60.0

    66.70

    73.70

    1

    96.8

    15.5

    125.8

    77.5

    1.0

    1.5SMBJ64A

    　

    GGM

    　

    64.0

    71.10

    78.60

    1

    103.0

    14.6

    133.9

    73.0

    1.0

    1.5SMBJ70A

    　

    GGP

    　

    70.0

    77.80

    86.00

    1

    113.0

    13.3

    146.9

    66.5

    1.0

    1.5SMBJ75A

    　

    GGR

    　

    75.0

    83.30

    92.10

    1

    121.0

    12.4

    157.3

    62.0

    1.0

    1.5SMBJ78A

    　

    GGT

    　

    78.0

    86.70

    95.80

    1

    126.0

    11.9

    163.8

    59.5

    1.0

    1.5SMBJ85A

    　

    GGV

    　

    85.0

    94.40

    104.00

    1

    137.0

    11.0

    178.1

    55.0

    1.0

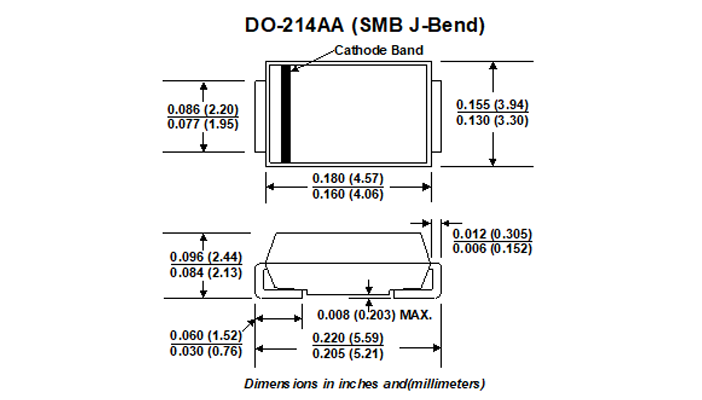

    CURVES & DIMENSIONS

    RATINGS AND CHARACTERISTIC​ CURVES

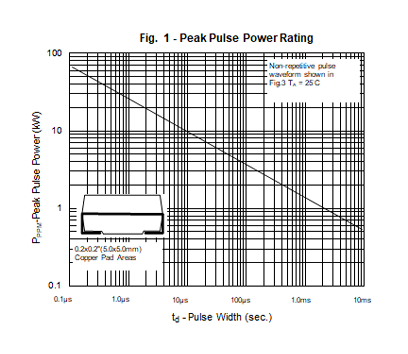

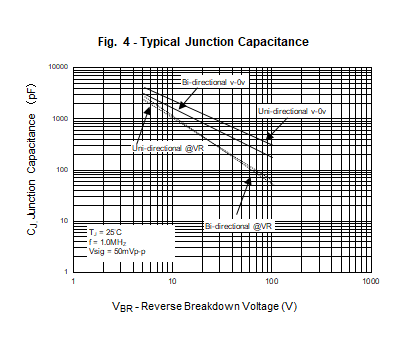

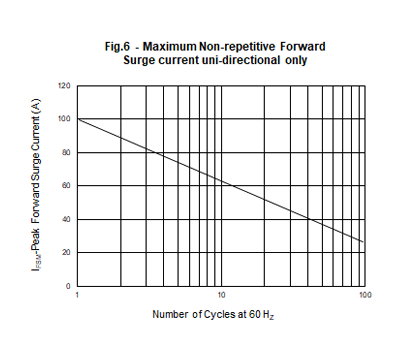

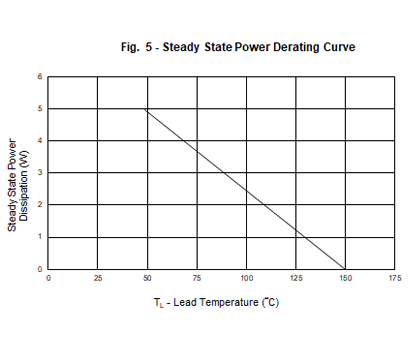

    Ratings and Characteristic Curves (TA=25℃ unless otherwise noted)









    SYSTEM

    SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

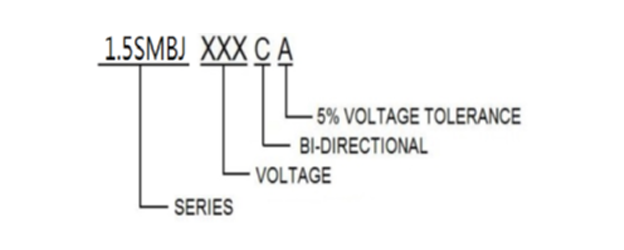

    Part Numbering System

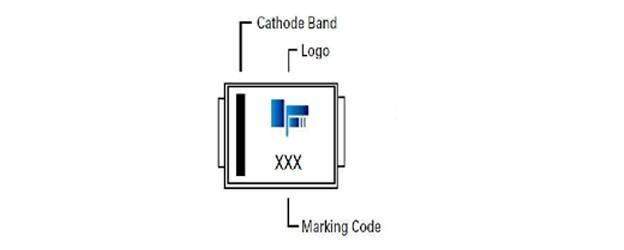

    Part Marking System



    Packaging

    Part number
    		Component Package QuantityPackaging OptionPackaging Specification
    1.5SMBJxxXX
    		 DO-214AA 3000Tape & Reel - 16mm/13" tape
    		EIA STD RS-481
    1.5SMBJxxXX
    		DO-214AA
    		500
    		Tape & Reel - 16mm/ 7" tape
    		EIA STD RS-481
